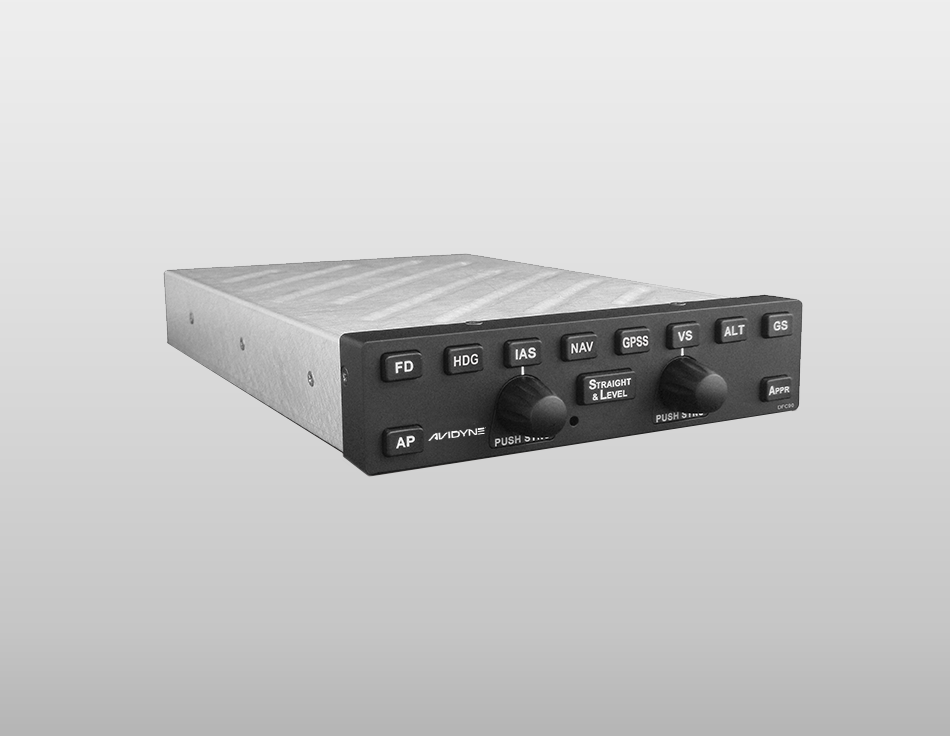

DFC90 Digital Autopilot

Model #: 850-00170-000

Up to 2-Year Limited Warranty

Relax. You Have A DFC90 To Do The Flying For You

If you’re looking for an autopilot that’s easy to operate, has high accuracy, includes a full range of modes normally found in turbine class autopilots, and makes flying a breeze, look no further than Avidyne’s DFC90.

The DFC90 is attitude-based with digital precision and eliminates all the overshoots, shortcomings, and flutters inherent with older, rate-based autopilots, especially when tracking an ILS to minimums in windy conditions.

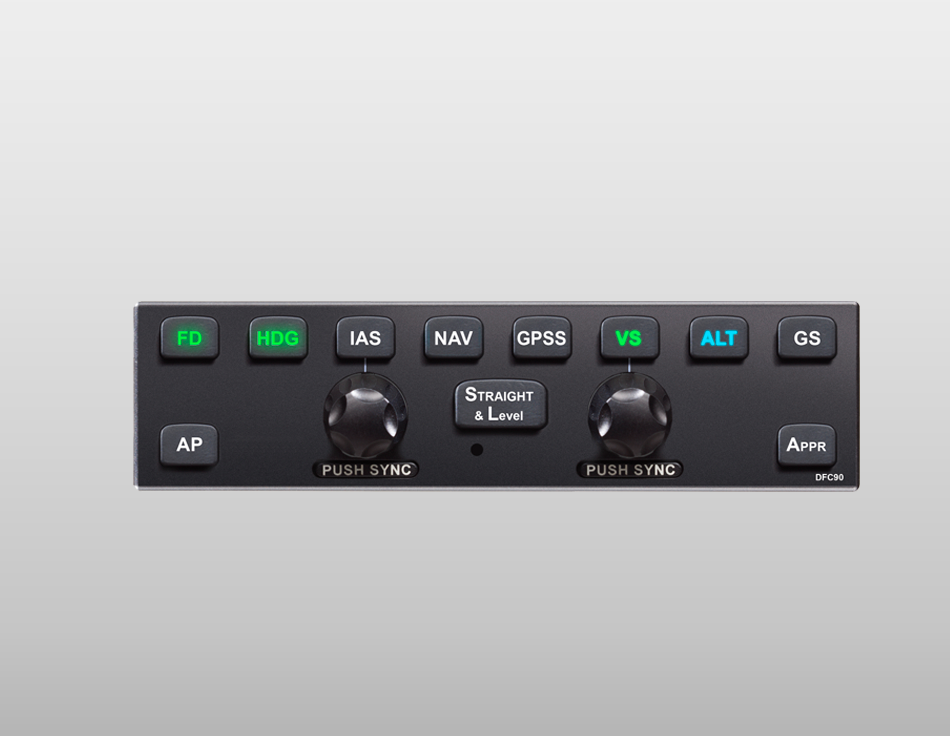

And unlike autopilots with monochromatic displays, the DFC90 never makes you guess what functions are engaged with both backlit buttons that turn blue when “armed” and green when “engaged” and indicators right on your displays. You’ll have the peace of mind knowing what’s engaged, and that you’re in great hands with the DFC90.

Features


  • Utilizes the PFD/EFD all-digital Air Data & Attitude/Heading Reference System for greatly improved stability and higher reliability.
  • Certified for Cirrus SR20/22, Beech Bonanza, Cessna 182 Series, and Piper PA46 Matrix & Mirage.
  • All the standard vertical and lateral modes of operation of a turbine-class autopilot system, including; Enhanced Flight Director (FD), Altitude Hold (ALT), Airspeed Hold (IAS), Vertical Speed Hold (VS), Heading (HDG), and Navigation (NAV, APPR, LOC/GS, GPSS)
  • “STRAIGHT & LEVEL” button recovers the aircraft from unusual attitudes and overrides all autopilot modes and levels the aircraft in both pitch and roll. S&L button provides added peace of mind—especially for the non-pilot in the right seat.

Dimensions

  • Width: 6.25" (159mm)
  • Height: 1.5" (38mm)
  • Depth: 10.6" (279mm)

Weight

  • 2.02 lbs (0.92 kg)

TSOs

  • TSO-C9c Automatic Pilots
  • TSO-C52b Flight Director Equipment

STC Approvals

  • With Vantage12
    • Cirrus SR20/22  (pending)
  • With Entegra PFD
    • Cirrus SR20/22
    • Piper PA46-350T Matrix
    • Piper PA46-350P Mirage
  • With Aspen EFD1000 Pro
    • Cirrus SR20/22
    • Cessna 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, 182S, 182T, R182
    • Beech Bonanza 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, E33, E33A, E33C, F33, F33A, F33C, G33, H35, J35, K35, M35, N35, P35, S35, V35, V35A, V35B, 36, A36 and A36TC.

DFC90 Digital Autopilot Datasheet

File Size: 731.36 KB
