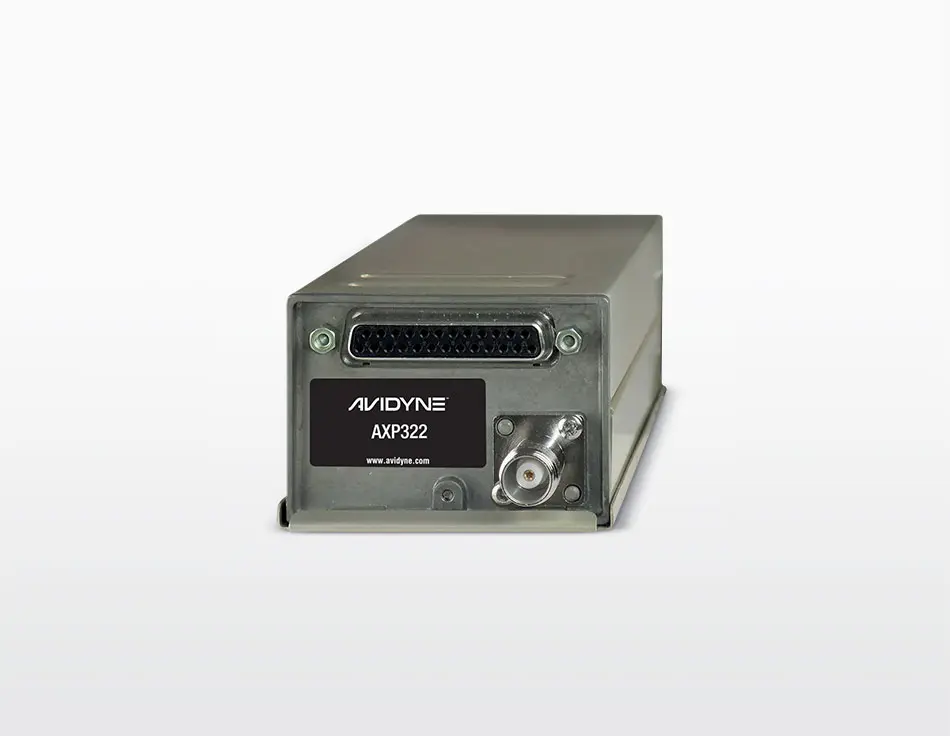

AXP322 ADS-B Out Remote Mount Transponder

Model #: 850-00222-000

Up to 2-Year Limited Warranty

Be Certain Your Position Is Known

See and be seen – a statement that is critical to safe flight. When you equip your IFD-equipped aircraft with Avidyne’s AXP322 Remote-Mount Mode S Transponder, you’ll be flying with the knowledge that all ADS-B equipped aircraft will be aware of your ground track, ground speed and altitude.

The remote-mounted Avidyne AXP322 meets FAA requirements for the latest Version 2 1090 MHz Automatic Dependent Surveillance Broadcast (ADS-B) Extended Squitter when coupled to any Avidyne IFD.

Features


  • Class 1 Mode S Level 2 Datalink Transponder
  • Remote-mounting saves space on the flight panel for additional avionics.
  • Full ADS-B surveillance capability to meet the upcoming mandates for flight above and below FL180
  • Supports 1090MHz Extended Squitter (ES)
  • Easily controlled using any of Avidyne’s IFD Series GPS/NAV/COM systems
Dimensions

  • Width: 2.68” (68mm)
  • Height: 1.89” (48mm)
  • Depth: 6.3” (160mm)
Weight

  • 0.97 lbs (0.35 kg)
Power

  • 9-33 V
  • Idle: 0.15 A Active: 0.34 A
  • 250 W at connector
Environmental

  • -40°C to +70°C
  • No external cooling fan required

AXP322 Datasheet

File Size: 336.84 KB
