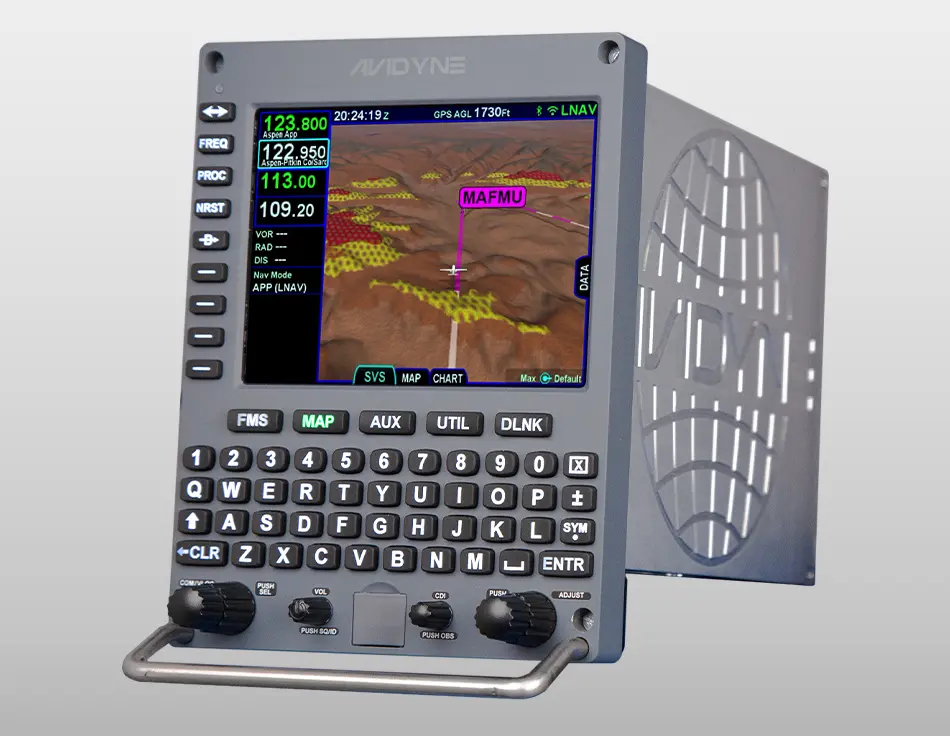

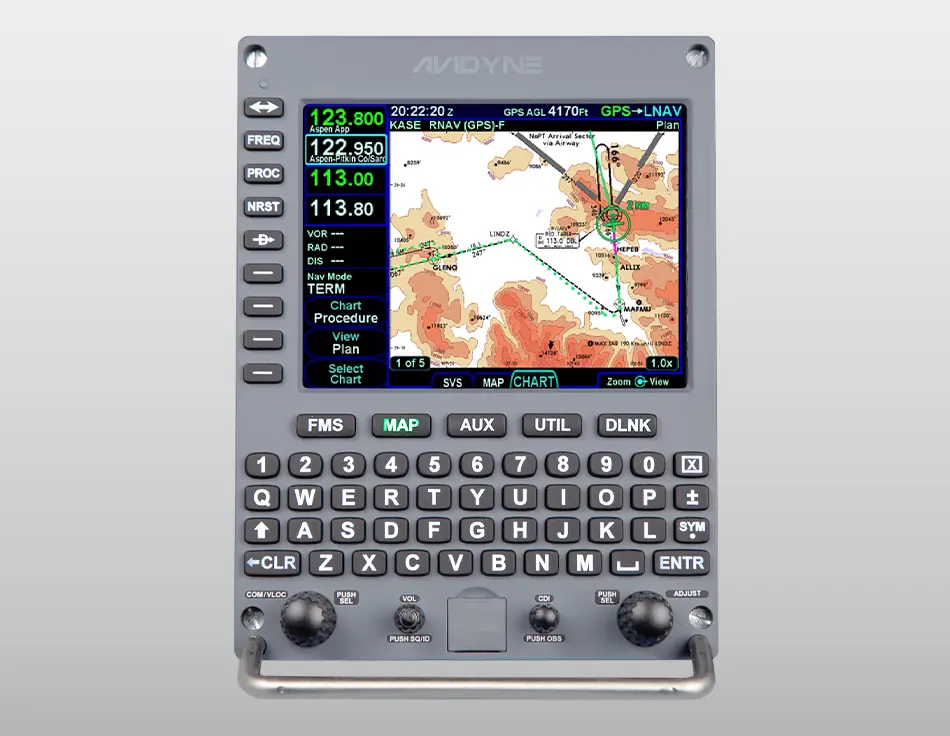

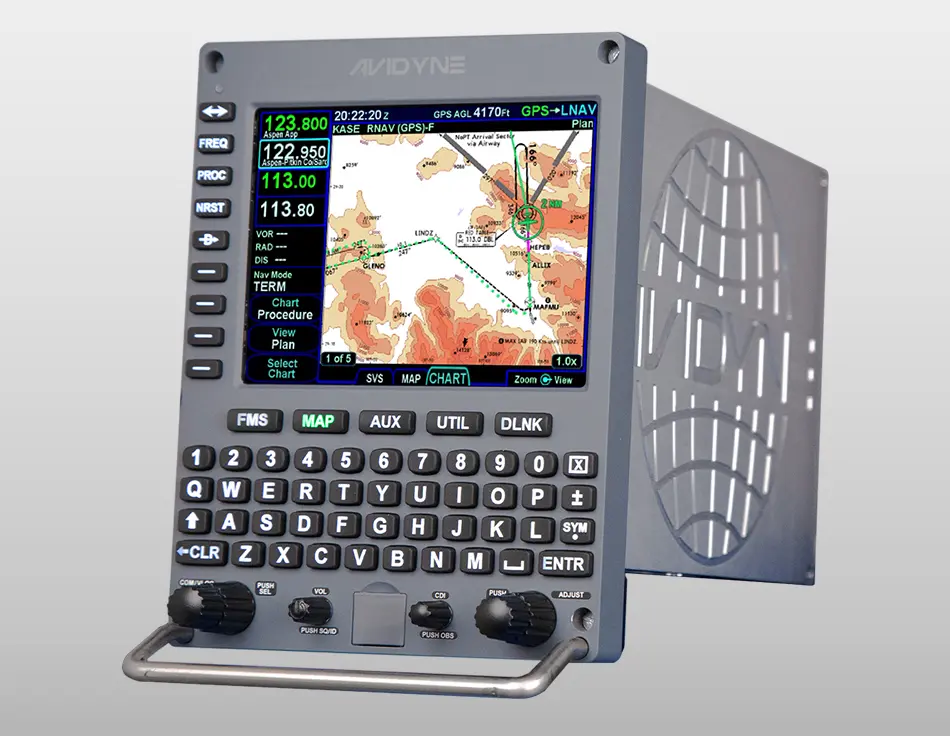

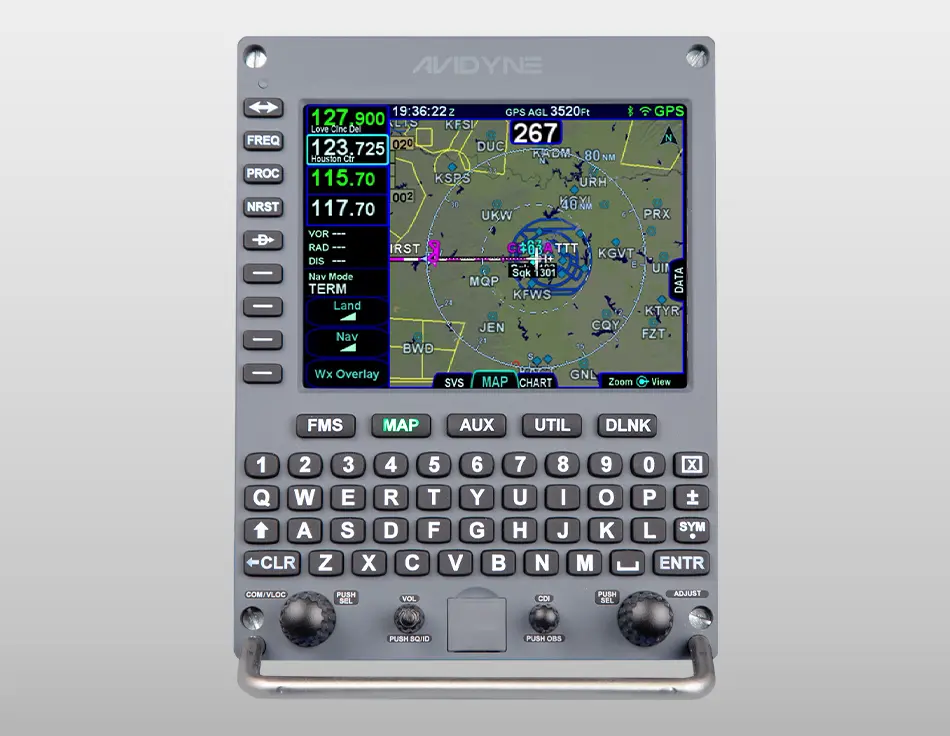

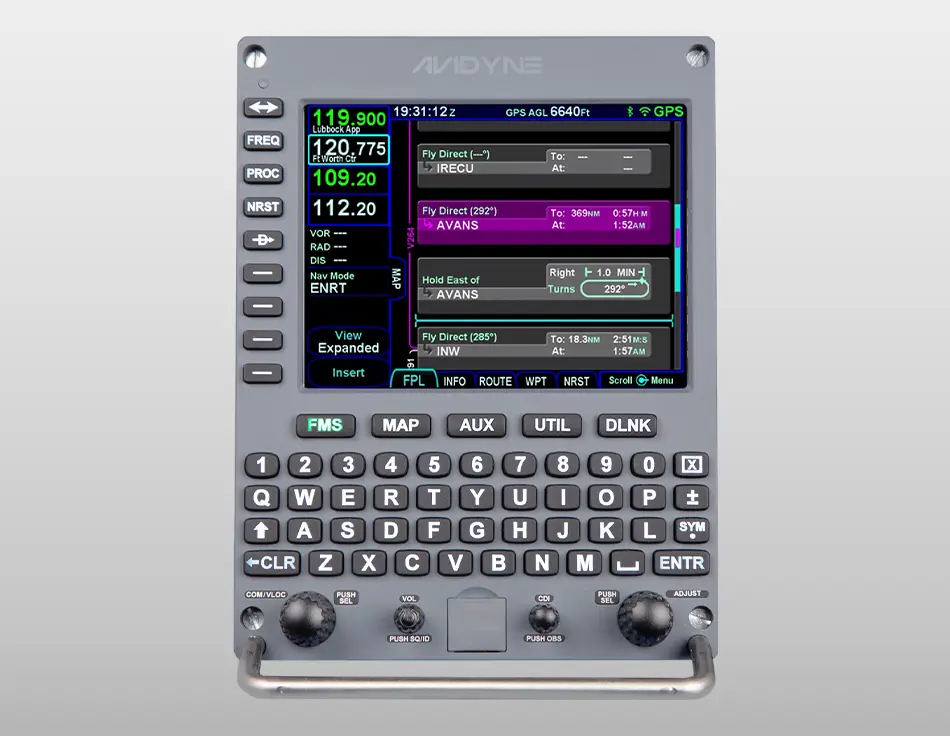

Avidyne Atlas

Model #: 850-00194-120

Up to 2-Year Limited Warranty

The Next Generation of SBAS Flight Management For Turbine Pilots

Avidyne ATLAS™ sets a new standard in turbine class navigation systems with full Required Navigation Performance (RNP) and Area Navigation (RNAV) capability, including Localizer Performance with Vertical (LPV), Lateral Navigation/Vertical Navigation (LNAV/VNAV), LNAV-Only, and Approach Procedures with Vertical (APV) approach modes. But true capability demands ease-of-use which is why we built-in features like easy flight planning, one-touch departure, airway, and arrival navigation, and included our patented GeoFill™ waypoint nomination. We even included a full keyboard and touch-screen input for easy map panning and flight plan editing.

Avidyne Atlas makes flying a pleasure with easy-to-use flight planning, one-touch departure, airway and arrival navigation, plus Avidyne’s predictive GeoFill™ waypoint nomination combined with map panning and rubber-band flight plan editing.

Features


  • Part 25 Certified
  • Easy-to-use flight planning, one-touch departure, airway, and arrival navigation
  • Predictive waypoint nomination with Avidyne’s patented GeoFill™
  • QWERTY-style dedicated keyboard along with touch-screen hybrid touch user interface
  • Integrates with most existing equipment in including EFIS, PFDs, CDIs, HSIs, remote sensors, and autopilots

Display

  • 5.7” Diagonal w/Touch Screen
  • Full VGA - 640 x 480 pixels
  • 65,535 colors
  • Ultrabright sunlight readable w/LED Backlighting

Dimensions

  • Width: 5.750" (190.50mm)
  • Height: 7.500" (146.05mm)
  • Depth: 11.900" (302.26) behind panel including connectors

Weight (including tray and connectors)

  • 8.50 lbs (3.855 kgs)

Power Requirements

  • 11 – 33VDC
  • 2.2A/4.0A XMIT @ 28vdc

VHF & VOR/LOC

  • 16-watt transmitter (Class 3, 5)
  • Simultaneous reception of two channels, voice or data
  • 8.33KHZ or 25KHZ operation (Class C, E)
  • VOR-RTCA DO-196
  • LOC-RTCA DO-1965
  • UHF GS-RTCA DO-192

GPS

  • 16-Channel GPS/SBAS Receivers
  • RTCA DO-178B and DO-254 Level B
  • RTCA DO-160E
  • Meets DO229D, Beta Class 3
  • Accuracy:
  • - Autonomous Position: 3 meters (CEP 50%), 5 meters (95%)
  • - SBAS Differential Position: 1 meter (CEP), 3 meters (95%)
  • - Velocity Sccuracy 0.1 knots (95%)
  • Dynamics:
  • - Acceleration: 10g max
  • - Speed: 1,000 knots
  • - Altitude: 50,000 ft

Environmental

  • DO 160E
  • To 50,000 Ft
  • -20C to +55C Operating
  • +70C Short Term
